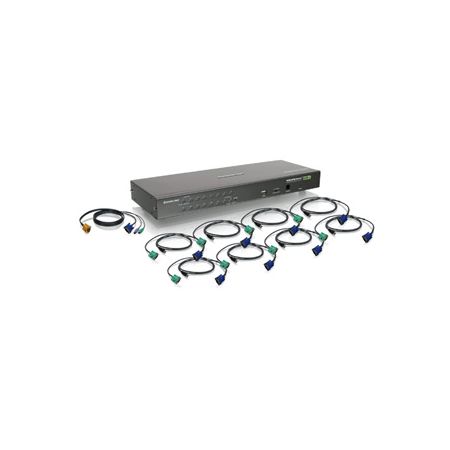

Iogear 16-Port USB PS/2 Combo KVM Switch with Cables Item # 843415

 |
Iogear 16-Port USB PS/2 Combo KVM Switch with Cables
$ 604 .99 / each $604.99
Add a Protection Plan (optional)  Learn More
Includes Coverage For Accidental Drops & Spills
In Stock
Free delivery
Estimated delivery 3-7 business days

    Description

    The GCS16KIT is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS16KIT features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.The GCS16KIT includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS16KIT intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.

    Back To Top

    Product Details

    Item # 843415
    OfficeMax # 24184605
    Manufacturer # Y89108
    height 1.7 in
    Daisy Chain Supported Yes
    width 17 in
    package contents USB PS/2 Combo KVM Switch; 8 x 2M USB KVM Cable (G2L5202U); 1 x 2M PS/2 KVM Cable (G2L5202P); 1 x Console cable; 1 x Firmware Upgrade Cable; 1 x Cascade Cable; 1 x Rack Mount Kit; 1 x Grounding Wire; 1 x Foot Pad Set (4 Pads); 1 x Power Adapter; 1 x Installation Guide; 1 x Warranty Card
    depth 6.3 in
    Product Name USB PS/2 Combo KVM Switch
    Rack Height 1U
    manufacturer Iogear, Inc
    Graphic Mode QXGA
    weight 6.02 lb
    brand name Iogear
    USB Yes
    Number of USB Ports 1
    Number of Computers Supported 16
    Max Cascading Depth 256
    Maximum Video Resolution 2048 x 1536
    form factor Rack-mountable
    warranty length 3-year limited
